10 Watt Series Switching Adaptor

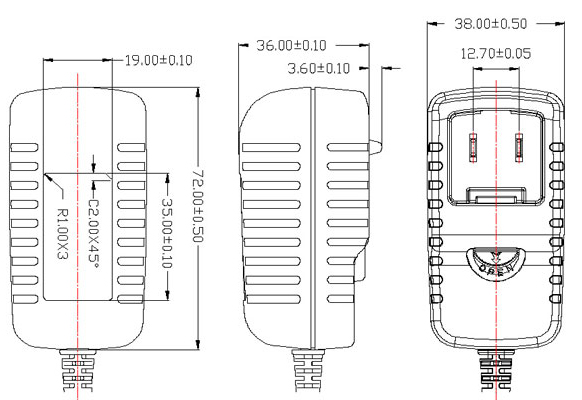

Shape and dimensions
1)UL,PSE Case, Wall Mount Style
2)CE, Korea Case, Wall Mount Style
3)UK,HK Case, Wall Mount Style
4)Australia, New Zealand Case, Wall Mount Style

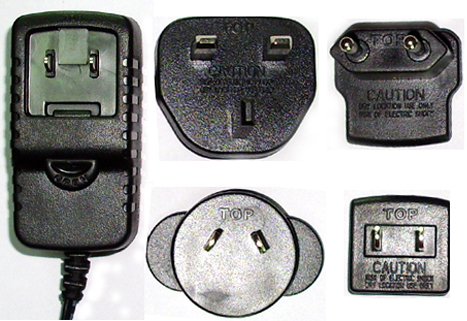

5)Interchangeable plugs Style
Main Characteristics
Product Highlight
- Complete, inexpensive, self-contained regulated power source
for use in charging cell Lithium-ion and/or NiCd or NiMH batteries- Super power supply, fixed frequency control circuit guarantees Stable, long-lasting output required by any mobile electronics, such as Mobile phones, Walkie-Talkie, PDA, Digital camera, CD/MP3 player, and much more.
- Ultra safe design, all with their respective safety approvals.
- Ultra low no-load/standby power consumption, meeting EC 2005 green power requirements.
- Light, sleek, and compact design
- On-line LED power indicator (optional)
- High efficiency circuitry that generates little heat
- Built in EMI filter.
Built-in Features and protections
- Short circuit protection.
- Over voltage protection.
- Over current protection.
- Thermal shutdown capability.
Reliability
- Burn-in: 100% full load ,40+/-5degree C, 4Hrs min.
- Leakage Current: Class two: 0.25mA max. at 254Vac.
- Withstanding Voltage:(between primary & secondary) 3000Vac I minute 10mA max., Class one: 1500Vac 1 minute 10mA max.,
- MTBF: meet MIL-HDBK-217F over 50K hours,full load, 25 degree C
Safety approvals
- UL60950 3rd edition CAN/CSA C22.2 NO.60950
- EN60950:2000
- CE(Low Voltage Directive)
- AS/NZS 60950:2000 A1
- PSE IEC60950
- GB4943-2001
Emissions
- FCC Part 15 class B
- EN55022 class B
- AS/NZS3548,AS/NZS4251.1 class B
- VCCI class B
- CNS 13438 class B
- GB9254-1998/G B 17625.1-2003
- ClSPR22 class B
Immunity
- EN55024/A 1:2001
- Electrostatic discharge:61000-4-2
- Radiated electromagnetic fields:61000-4-3
- Fast transients(burst):61000-4-4
- Surge transients:61000-4-5
- Conducted disturbance:61000-4-6
- Voltage dips, interruptions & variations:61000-4-11
Schematic Drawings
Standard Product Specifications
Description Symbol Min Typ Max Units Comment Input Voltage Vin 90 120 264 VAC 2 Wire-no protective ground Frequency FLINE 47 50/60 63 Hz No-load Input Power 0.3 W at 230VAC Output Output Voltage VOUT 2.8 12 24 V Output Current lout 10 2000 mA Output Ripple Voltage VRIPPLE 40 100 200 mV 20 MHz Bandwidth Total Output Power Continuous Output Power POUT 0.14 12 W Peak Output Power POUT PEAK 12 W Efficiency 65 75 % 25 °C Environmental Operating Temperature 0 40 °C Free convection, Sea level Non-operating
temperature-20
80
°C Operating humidity 10 90 %RH Non condensing Non-operating humidity 10 90 %RH Non condensing Typical Model List
CONDITION
OUTPUT
VOLTAGEDC
OUTPUT
CURRENTOUTPUT
VOLTAGE
PRECISIONRIPPLE
&
NOISESREGULATION
MAXIMUM
OUTPUT
POWERLINE
LOAD
Input voltage:
90-264Vac
Frequency:
47-63Hz
Input current:
0.3A1
21-24V
0-0.57A
5%
150mV
+/-1%
+/-5%
12W
2
16-20V
0-0.75A
5%
150mV
+/-1%
+/-5%
12W
3
10-15V
0-1.2A
5%
100mV
+/-1%
+/-5%
12W
4
9.4-9.9V
0-1.06A
5%
100mV
+/-1%
+/-5%
10W
5
8.8-9.3V
0-1.13A
5%
80mV
+/-1%
+/-5%
10W
6
8.2~8.7V
0-1.22A
5%
80mV
+/-1%
+/-5%
10W
7
7.6-8.1V
0-1.32A
5%
70mV
+/-1%
+/-5%
10W
8
7.0-7.5V
0-1.43A
5%
70mV
+/-1%
+/-5%
10W
9
6.4-6.9V
0-1.56A
5%
60mV
+/-1%
+/-5%
10W
10
5.8-6.3V
0-1.72A
5%
60mV
+/-1%
+/-5%
10W
11
5.2-5.7V
0-1.92A
5%
60mV
+/-1%
+/-5%
10W
12
4.6-5.1V
0-2.17A
5%
50mV
+/-1%
+/-5%
9.2W
13
4.0-4.5V
0-2.0A
5%
50mV
+/-1%
+/-5%
9W
14
3.4-3.9V
0-2.0A
5%
50mV
+/-1%
+/-5%
7.8W
15
2.8-3.3V
0-2.0A
5%
50mV
+/-1%
+/-5%
6.6W
Remark: Refer to ripple and noise
1. Measurements shall be made with an oscilloscope with 20MHz bandwidth.
2. Outputs shall be bypassed at the connector with a 0.1 uF ceramic disk capacitor and
a 10uF electrolytic capacitor to simulate system loading.
