5 Watt Series Switching Adaptor
Shape and dimensions:
1)UL,PSE Case, Wall Mount Style
2)CE, Korea Case, Wall Mount Style
3)UK,HK Case, Wall Mount Style
4)Australia, New Zealand Case, Wall Mount Style

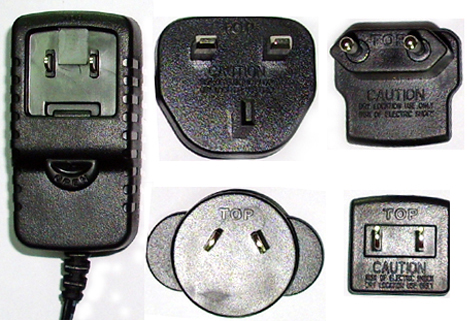

5)Interchangeable plugs Style
Main Characteristics
Product Highlight
- Complete, inexpensive, self-contained regulated power source
for use in charging cell Lithium-ion and/or NiCd or NiMH batteries- Super power supply, fixed frequency control circuit guarantees Stable, long-lasting output required by any mobile electronics, such as Mobile phones, Walkie-Talkie, PDA, Digital camera, CD/MP3 player, and much more.
- Ultra safe design, all with their respective safety approvals.
- Ultra low no-load/standby power consumption, meeting EC 2005 green power requirements.
- Light, sleek, and compact design
- On-line LED power indicator , (optional)
- High efficiency circuitry that generates little heat
- Built in EMI filter.
Built-in Features and protections
- Short circuit protection.
- Over voltage protection.
- Over current protection.
- Thermal shutdown capability.
Reliability
- Burn-in: 100% full load ,40+/-5degree C, 4Hrs min.
- Leakage Current: Class two: 0.25mA max. at 254Vac.
- Withstanding Voltage:(between primary & secondary) 3000Vac I minute 10mA max., Class one: 1500Vac 1 minute 10mA max.,
- MTBF: meet MIL-HDBK-217F over 50K hours,full load, 25 degree C
Safety approvals
- UL60950 3rd edition CAN/CSA C22.2 NO.60950
- EN60950:2000
- CE(Low Voltage Directive)
- AS/NZS 60950:2000 A1
- PSE IEC60950
- GB4943-2001
Emissions
- FCC Part 15 class B
- EN55022 class B
- AS/NZS3548,AS/NZS4251.1 class B
- VCCI class B
- CNS 13438 class B
- GB9254-1998/G B 17625.1-2003
- ClSPR22 class B
Immunity
- EN55024/A 1:2001
- Electrostatic discharge:61000-4-2
- Radiated electromagnetic fields:61000-4-3
- Fast transients(burst):61000-4-4
- Surge transients:61000-4-5
- Conducted disturbance:61000-4-6
- Voltage dips, interruptions & variations:61000-4-11

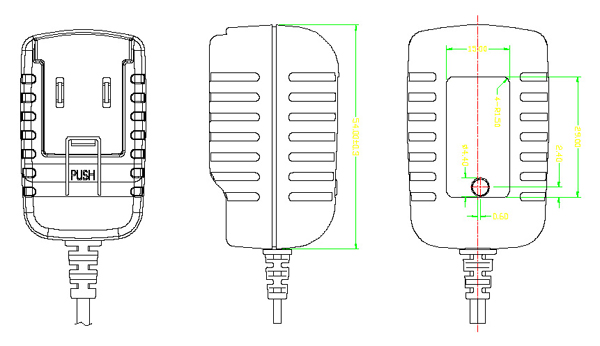

Schematic Drawings
Standard Product Specifications
Description Symbol Min Typ Max Units Comment Input Voltage Vin 90 120 264 VAC 2 Wire,no protective ground Frequency FLINE 47 50/60 63 Hz No-load Input Power 0.3 W at 230VAC Output Output Voltage VOUT 2.8 12 24 V Output Current lout 10 1000 mA Output Ripple Voltage VRIPPLE 40 100 200 mV 20 MHz Bandwidth Total Output Power Continuous Output Power POUT 0.14 5 W Peak Output Power POUT PEAK 5 W Efficiency 60 70 % at 25°C Environmental Operating Temperature 0 40 °C Free convection, Sea level Non-operating
temperature-20
80
°C Operating humidity 10 90 %RH Non condensing Non-operating humidity 10 90 %RH Non condensing Typical Model List
INPUT
CONDITIONDC OUTPUT
VOLTAGE
DC
OUTPUT
CURRENTOUTPUT
VOLTAGE
PRECISIONRIPPLE
&
NOISESREGULATION
MAXIMUM
OUTPUT
POWER
LINE
LOAD
Input volatge:
90-264Vac
Frequency:
47-63Hz
Input current:
0.15A1
21-24V
0-0.24A
5%
150mV
+/-1%
+/-5%
5W
2
16-20V
0-0.31A
5%
150mV
+/-1%
+/-5%
5W
3
10-15V
0-0.5A
5%
100mV
+/-1%
+/-5%
5W
4
9.4-9.9V
0-0.53A
5%
100mV
+/-1%
+/-5%
5W
5
8.8-9.3V
0-0.57A
5%
80mV
+/-1%
+/-5%
5W
6
8.2-8.7V
0-0.61A
5%
80mV
+/-1%
+/-5%
5W
7
7.6-8.1V
0-0.66A
5%
70mV
+/-1%
+/-5%
5W
8
7.0-7.5V
0-0.71A
5%
70mV
+/-1%
+/-5%
5W
9
6.4-6.9V
0-0.78A
5%
60mV
+/-1%
+/-5%
5W
10
5.8-6.3V
0-0.86A
5%
60mV
+/-1%
+/-5%
5W
11
5.2-5.7V
0-0.96A
5%
60mV
+/-1%
+/-5%
5W
12
4.6-5.1V
0-1.0A
5%
50mV
+/-1%
+/-5%
5W
13
4.0-4.5V
0-1.0A
5%
50mV
+/-1%
+/-5%
4.5W
14
3.4-3.9V
0-1.0A
5%
50mV
+/-1%
+/-5%
3.9W
15
2.8-3.3V
0-1.0A
5%
50mV
+/-1%
+/-5%
3.3W
Remark: Refer to ripple and noise
1. Measurements shall be made with an oscilloscope with 20MHz bandwidth.
2. Outputs shall be bypassed at the connector with a 0.1 uF ceramic disk capacitor and
a 10uF electrolytic capacitor to simulate system loading.
