55 Watt Series Switching Adaptor (For IT)

Shape and Dimensions

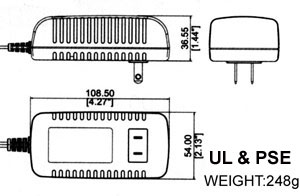

1)UL,PSE Case, Wall Mount Style

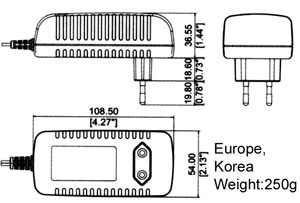

2)CE, Korea Case, Wall Mount Style

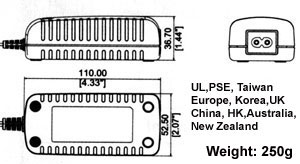

3)Universal Case, Desktop Style

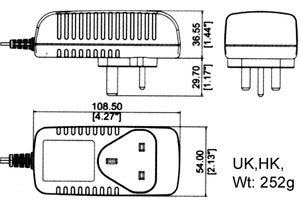

4)UK,HK Case, Wall Mount Style

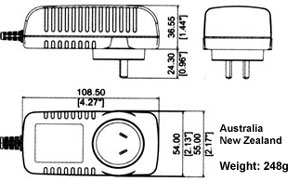

5)Australia, New Zealand Case, Wall Mount Style

Main Characteristics

Product Highlight
  • Complete, inexpensive, self-contained regulated power source
  • Universal input voltage 100~240 VAC 50/60HZ
  • Super power supply, fixed frequency control circuit  guarantees stable,  long-lasting output  required by any mobile electronics, such as LCD monitor, Notebook computers, Networking, printers, Test instrument, and much more.
  • Ultra safe design, all with their respective  safety approvals.
  • Ultra low no-load/standby power consumption,  meeting EC 2005 green power requirements.
  • Light, sleek, and compact design
  • On-line LED power indicator , (optional)
  • High efficiency circuitry that generates little heat
  • Built in EMI filter.
Built-in Features and protections
  • Different output voltage selections: 2.8-24 Vdc.
  • Short circuit protection.
  • Over voltage protection.
  • Over current protection.
  • Thermal shutdown capability.
Reliability
  • Burn-in: 100% full load ,40+/-5degree C, 4Hrs min.
  • Leakage Current: Class two: 0.25mA max. at 254Vac. Class one: 0.75mA max. at 254Vac.
  • Withstanding Voltage:(between primary & secondary) Class two:3000Vac I minute 10mA max., Class one: 1500Vac 1 minute 10mA max.,
  • MTBF: meet MIL-HDBK-217F  over 50K hours,full load, 25 degree C
Safety approvals
  • UL60950 3rd edition CAN/CSA C22.2 NO.60950
  • EN60950:2000
  • CE(Low Voltage Directive)
  • AS/NZS 60950:2000 A1
  • PSE IEC60950
  • GB4943-2001
Emissions
  • FCC Part 15 class B
  • EN55022 class B
  • AS/NZS3548,AS/NZS4251.1 class B
  • VCCI class B
  • CNS 13438 class B
  • GB9254-1998/G B 17625.1-2003
  • ClSPR22 class B
Immunity
  • EN55024/A 1:2001
  • Electrostatic discharge:61000-4-2
  • Radiated electromagnetic fields:61000-4-3
  • Fast transients(burst):61000-4-4
  • Surge transients:61000-4-5
  • Conducted disturbance:61000-4-6
  • Voltage dips, interruptions & variations:61000-4-11

Schematic Drawings

Electrical specifications

Description

Symbol

Min

Typ

Max

Units

Comment

Input

Voltage

VIN

90

120/240

264

VAC



Frequency

FLINE

47

50/60

63

Hz



No-load Input
Power(230VAC)



0.75

W



Efficiency

q



75



%



Inrush
Current(240Vac)


!




60




A


Cold 25 degree C

Environmental

Operating
Temperature

T

0

/

40

Degree
C

Free convection, Sea level

Non-operating

T

-20

/

80

Degree
C

Free convection, Sea level

Operating humidity

T

10

/

90

%RH

Non condensing

Non-operating
humidity

T

10



90

%RH

Non condensing



Typical model list


INPUT CONDITION


DC OUTPUT
VOLTAGE

DC OUTPUT
CURRENT

  OUTPUT
 VOLTAGE
PRECISION

RIPPLE
    &
NOISES

REGULATION

MAXIMUM
OUTPUT
 POWER


LINE


LOAD





Input Voltage:
90-264Vac

Frequency:
47-63Hz

Input current:
1.2A



1

21.5-24V

1-2.85A

5%

150mV

+/-1%

+/-5%

60W

2

20V

1-3A

5%

150mV

+/-1%

+/-5%

60W

3

19V

1-3.16A

5%

150mV

+/-1%

+/-5%

60W

4

18V

1-3.33A

5%

150mV

+/-1%

+/-5%

60W

5

16.8-17.9V

1-3.57A

5%

150mV

+/-1%

+/-5%

60W

6

15-16.5V

1.5-4.0A

5%

150mV

+/-1%

+/-5%

60W

7

12-14.8V

2-4.6A

5%

120mV

+/-1%

+/-5%

55W

8

11.1-11.9V

2-4.95A

5%

100mV

+/-1%

+/-5%

55W

9

10.6-11.0V

2-5.0A

5%

100mV

+/-1%

+/-5%

55W

10

9-10.5V

2.5-5.0A

5%

100mV

+/-1%

+/-5%

52.5W

11

8-8.9V

2.5-5.0A

5%

100mV

+/-1%

+/-5%

44.5W

12

7.6-7.9V

3-5.0A

5%

100mV

+/-1%

+/-5%

39.5W

13

7.1-7.5V

3-5.0A

5%

100mV

+/-1%

+/-5%

37.5W

14

5.1-7.0V

3.5-5.0A

5%

100mV

+/-1%

+/-5%

35W

15

5V

4-5.0A

5%

100mV

+/-1%

+/-5%

25W

16

4.5-4.9V

4-5.0A

5%

100mV

+/-1%

+/-5%

24.5W

Remark: Refer to ripple and noise

1. Measurements shall be made with an oscilloscope with 20MHz bandwidth.
                                    2. Outputs shall be bypassed at the connector with a 0.1 uF ceramic disk capacitor and
    a 10uF electrolytic capacitor to simulate system loading.


All the rights reserved for Wintach Electronics Co., Limited
