Volume: 1.8L/2.0L available |
 |
| Stainless steel: 201#(304# optionable) 不锈钢: 201#( 可选 304# ) Materieals thickness: 0.26mm(othe thickness 0.26-0.35mm customizable) 壶身厚度: 0.26mm（可定制） Body inside processing: supersonic cleaning( sanding or welding bone removing optionable) 内部抛光: 超声波水洗(可内砂、去焊骨) |
 |
| Internal sanding, and welding bones removals |
 |
| Internal sanding |
 |
| Internal supersonic cleaning |
| Beak: material thickness: 0.35, bright shining or sand shining corresponding to the mainboy 壶嘴: 厚度 0.35mm, 对应壶身光面/ 砂面 Heating disk: material thinkness:0.28, high polishing 发热盘: 厚度 0.28mm, 抛光亮面 Kettle bottle size:160X160X173.5 壶身尺寸: 160mm X 160mm X 173.5mm |
Details
| Plastic part: PP special for electric kettle, no burrs and edges, good hand feeling 塑料件: 电水壶专用 PP, 无毛边, 手感好. |
| Power supply seat: 360 degree turnable, black edge 电源座: 360 度旋转电源座，磨边黑色. |
 |
| Power seat with wrinkled surrounding edges （Compound power supply seat available) 褶皱电源座(可选复合电源座） |
|
| 光边电源座 Power seat with smooth surrounding edges |

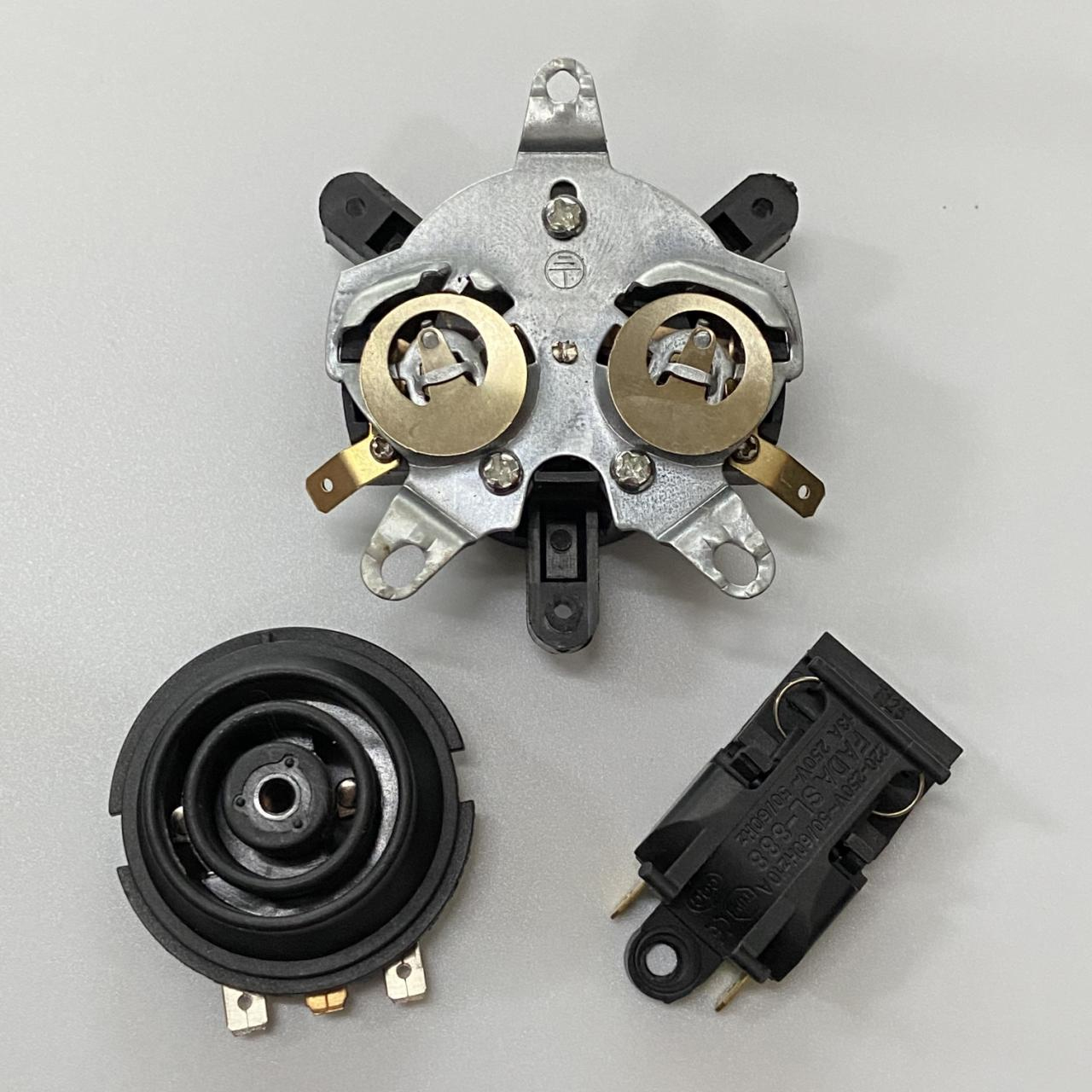

| Temperature control: single metal temperature contro (double metal customizable) Automatic power shut offer at 100degree temperature avoiding the dry heating 温控: 单金温控（可定制双金）, 水烧开 100℃自动断电, 带防干烧 |
 |
 |
| 灯线全铜, 截面积 0.5-0.75mm2 （可定制) |
 |

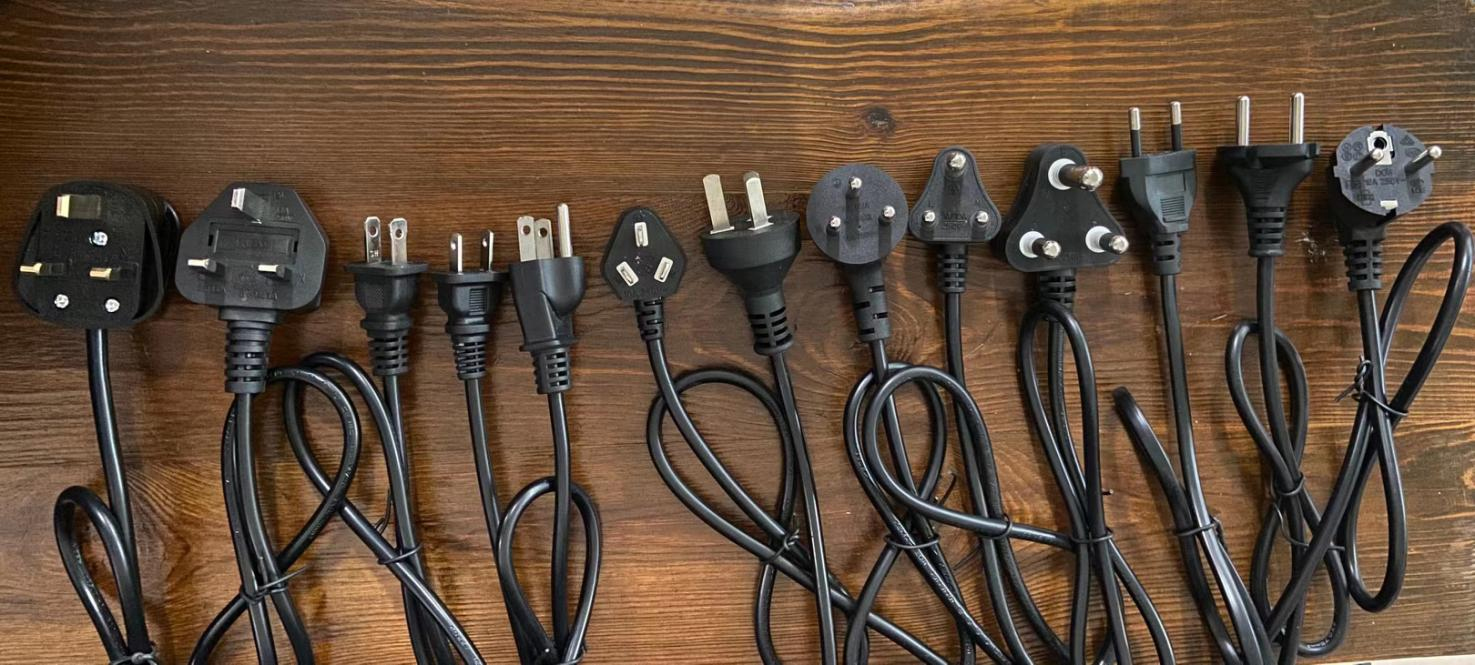

| Power cable： Copper with Aluminium clad outside (or pure copper) , 0.75-1mm2(customizable) 源线: 铜包铝（可全铜）, 截面积 0.75-1mm2（可定制）,长度 75cm（可 定制） |
 |
| Bottom label: Size: 40mmX20mm, put on the bottom of base(seat) 底标: 尺寸: 40mmX20mm, 贴在电水壶底部 |
| Manuals: size: 142.5mmX210mm 说明书: 尺寸: 142.5mmX210mm |
| Protection bag: Transparent plastic bag | 保护袋子: 透明塑料袋 |

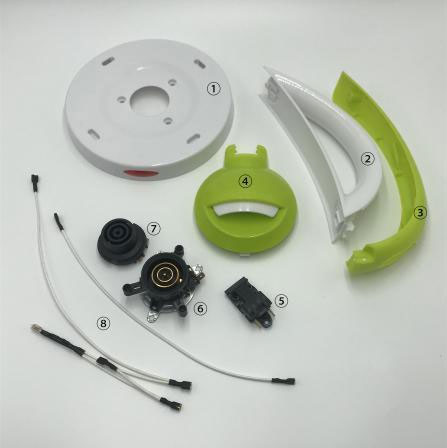

Spare parts
免费配件
| ① Heating base 底托 ② Inside handle 内手柄 ③ Outside handle 外手柄 ④ Inside steel cover 盖子（内钢盖） ⑤ Vapour/steam switch 蒸汽开关 ⑥ Temperature Control for dry heating 温控（防干烧） ⑦ Connector 连接器 ⑧ Led wires 灯线 Remark: color according to customer's requirements 备注: 颜色根据订单产品要求 |
 |

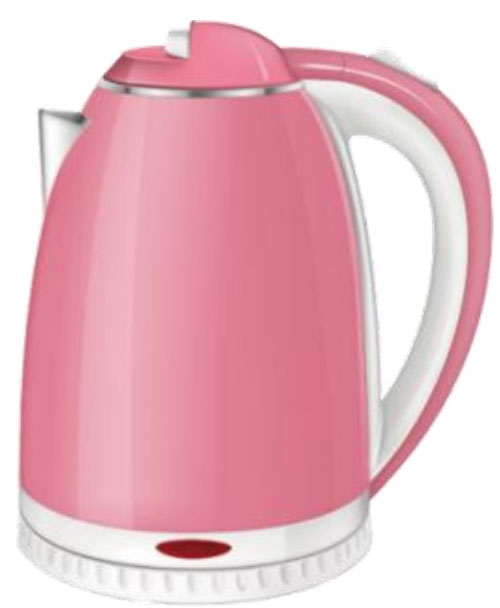

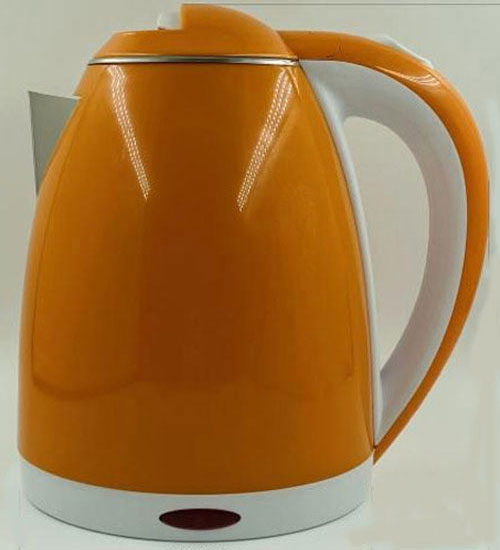

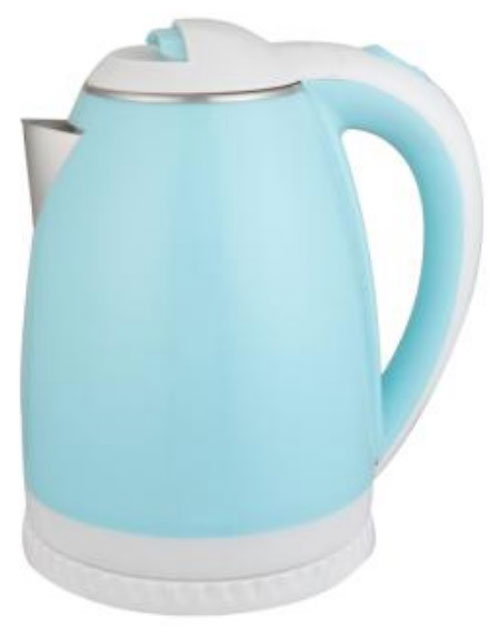

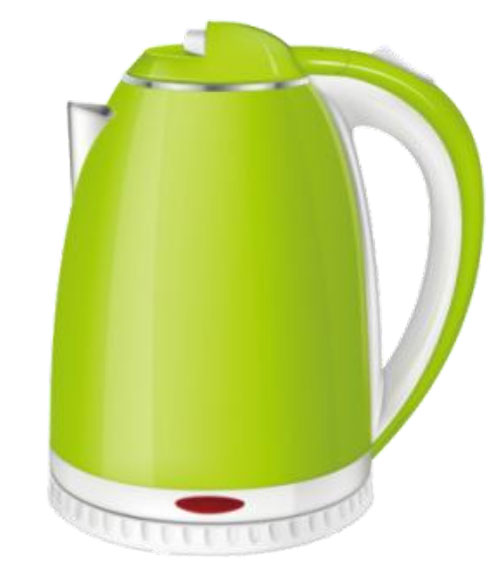

| The color of plastic handle and top cover selectable |
 |

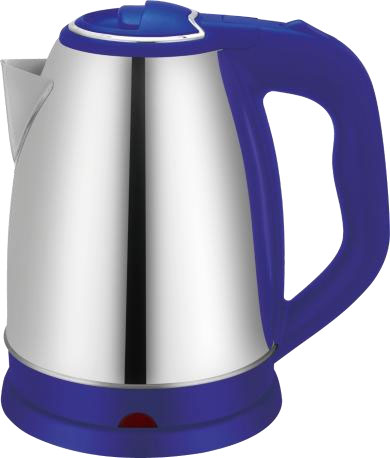

| Blue handle and seat |
 |
| Red handle and seat |
