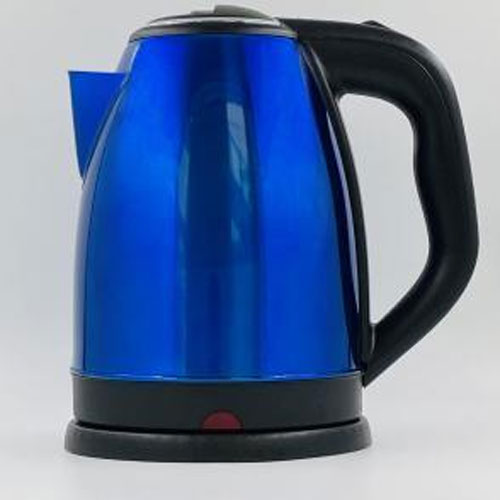

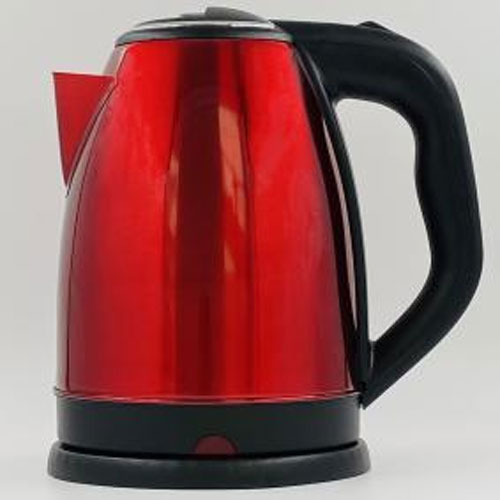

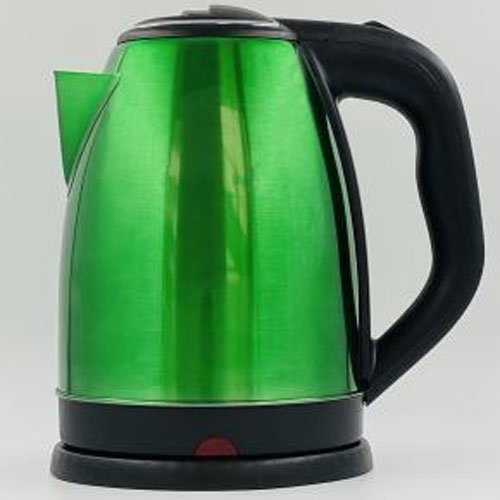

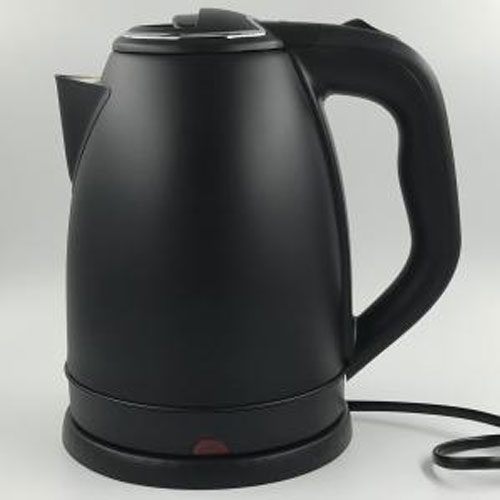

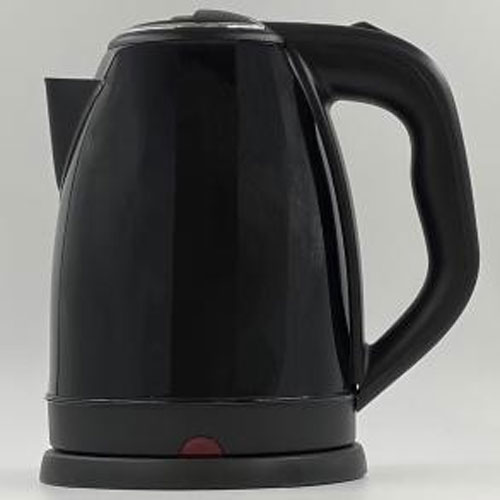

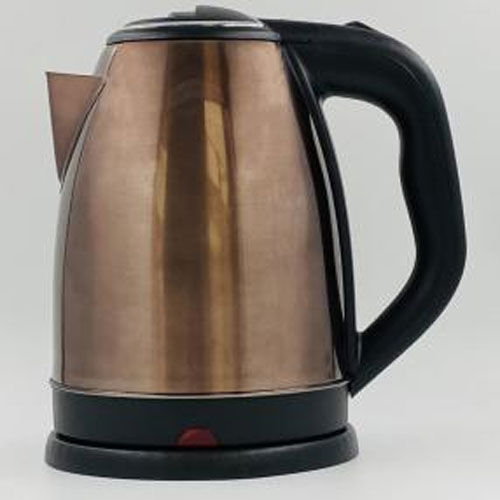

Customized Color Available

Parameters
参数

Volume: 1.8L/1.5L/1.2L available 容量：1.8L, 1.5l, 1.2L可选

1.8Litre	1.2Litre	1.5Litre

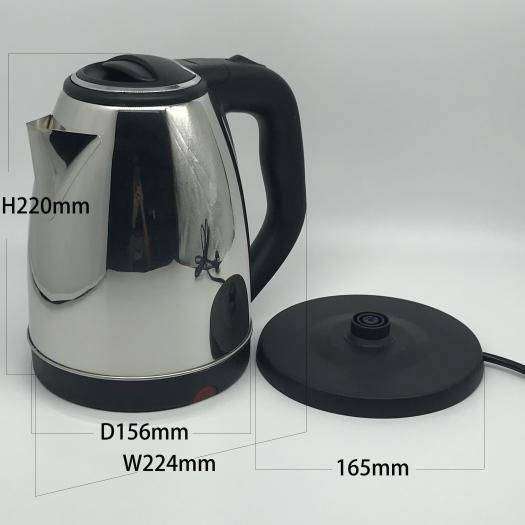

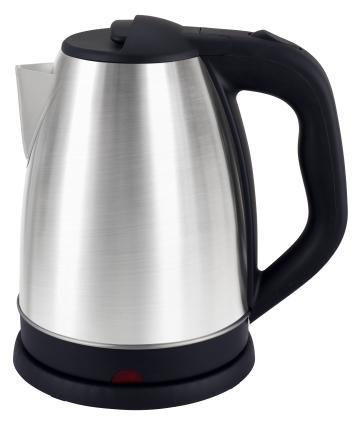

1.8L Model dimensions and weight and packages 1.8升的尺寸，重量和包装
Weight: 650g 重量: 650g Power: 1500W(Other wattage customizable) 功率: 1500W (可以定制其他功率) Voltage: 220V(220-240V or 110V/120V optionable) 电压: 220V (可选 220-240V 或 110V/120V) Frequency: 50Hz(or 50-60Hz) 频率: 50Hz (或 50-60Hz) Kettle size: 224mmX156mmX220mm 电水壶尺寸: 224mm X 156mm X 220mm Printed box size: 233mmX165mmX225mm 1.8L 彩盒尺寸: 233mm X 165mm X 225mm Height of printed box of 1.5L model is 205mm, 1.2 Model is 185mm (1.5L 彩盒高 205mm; 1.2L 彩盒高 185mm) Carton size of 1.8L model is 620mmX340mmX465mm (Height of 1.5L model carton is: 425mm, and 1.2L is 385mm 1.8L 纸箱尺寸: 620mm X 340mm X 465mm (1.5L 箱高 425mm; 1.2L 箱高 385mm) quantity per carton: 12PCS/CTN 装箱数: 12PCS/CTN Quantity per contaner： 8400pcs-9120pcs -10080pcs/40HQ 装柜数: 8400PCS-9120PCS-10080PCS/40HQ

\|Stailness steel main body 不锈钢壶身

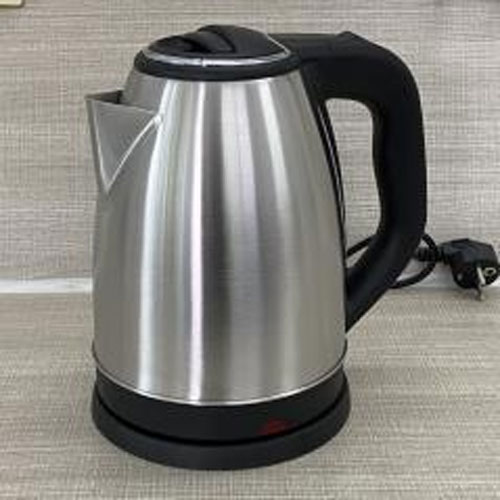

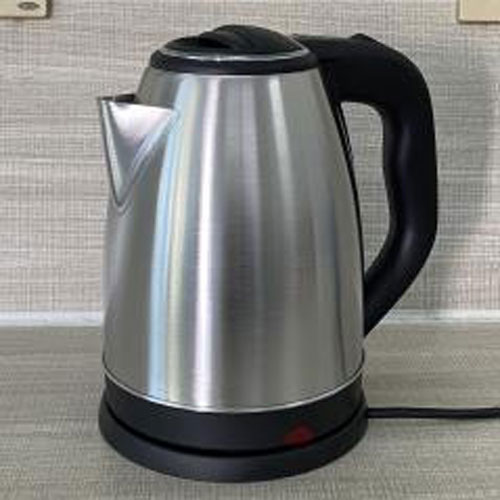

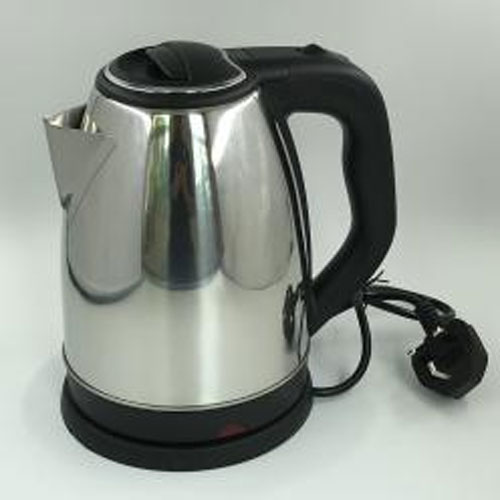

Bright shining or sand shining, or high polishing(high bright shining or high sand shining 亮光或砂光，可精抛（精光/精砂） Material thickness of main body: 0.26-0.35mm optionable 壶身厚度: 0.26-0.35mm 可选 Body inside processing: supersonic cleaning( sanding or welding bone removing optionable) 壶身内部处理: 超声波水洗（可选内砂、是否去焊骨）

Internal sanding, and welding bones removals

Internal sanding

Internal supersonic cleaning
Beak: material thickness: 0.35, bright shining or sand shining corresponding to the mainboy 壶嘴: 厚度 0.35mm, 对应壶身光面/ 砂面 Heating disk: material thinkness:0.28, high polishing 发热盘: 厚度 0.28mm, 抛光亮面

Parts Details
Plastic part: PP special for electric kettle, no burrs and edges, good hand feeling 塑料件: 电水壶专用 PP, 无毛边, 手感好.
Power supply seat: 360 degree turnable, black edge 电源座: 360 度旋转电源座，磨边黑色.

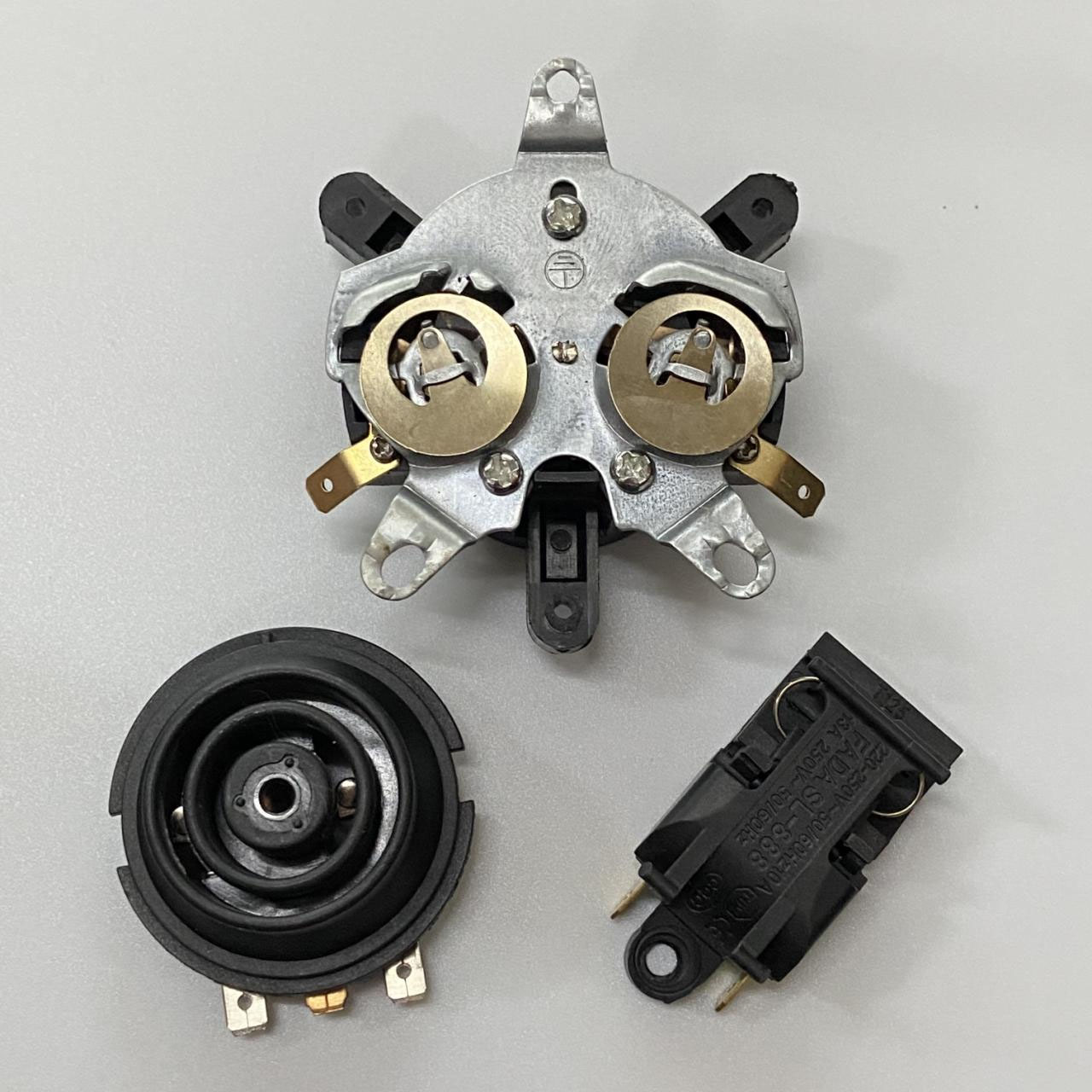

Temperature control: single metal temperature contro (double metal customizable) Automatic power shut offer at 100degree temperature avoiding the dry heating 温控: 单金温控（可定制双金）, 水烧开 100℃自动断电, 带防干烧


LED line: pure copper, 0.5-0.75mm2(customizable) 灯线: 全铜, 截面积 0.5-0.75mm2 （可定制

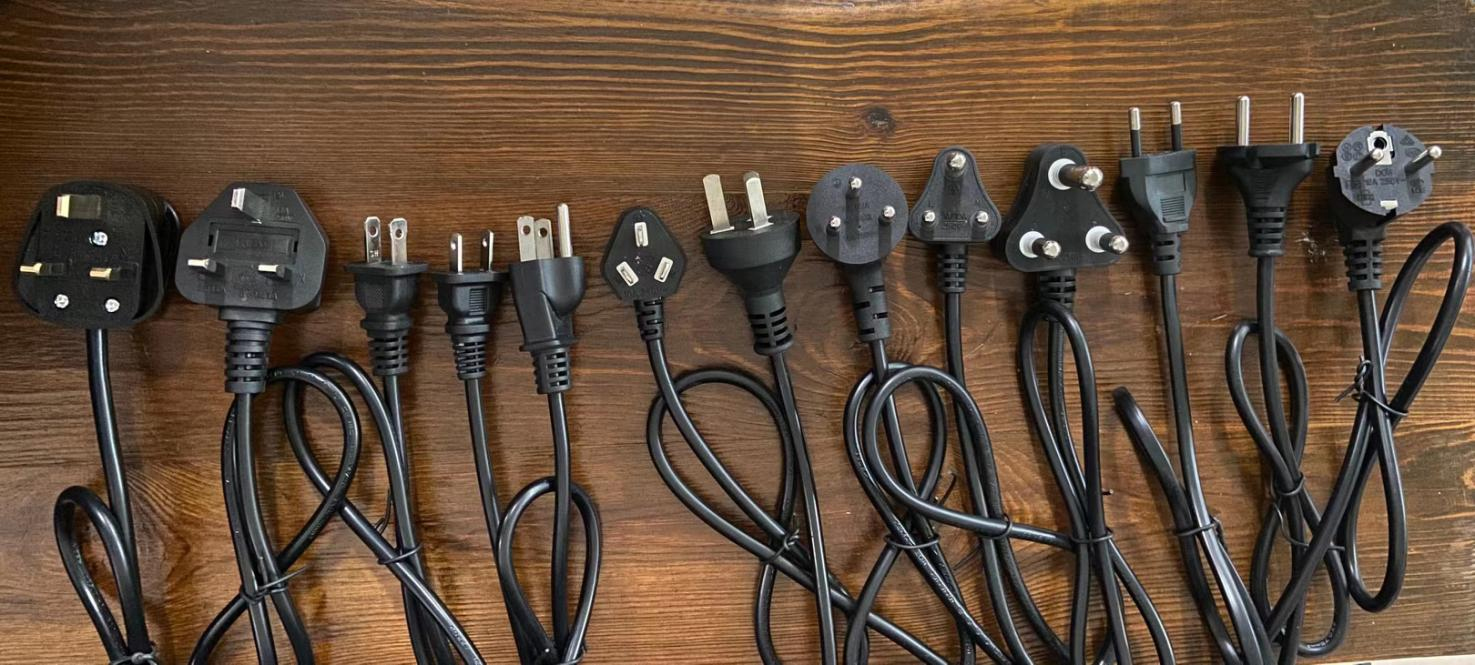

Power cable： Copper with Aluminium clad outside (or pure copper) , 0.75-1mm2(customizable) 电源线: 铜包铝（可全铜）, 截面积 0.75-1mm2（可定制）,长度 75cm（可定制）

Bottom label: Size: 40mmX20mm, put on the bottom of base(seat) 底标: 尺寸: 40mmX20mm, 贴在电水壶底部
Manuals: size: 142.5mmX210mm 说明书: 尺寸: 142.5mmX210mm
Protection bag: Transparent plastic bag 保护袋子: 透明塑料袋

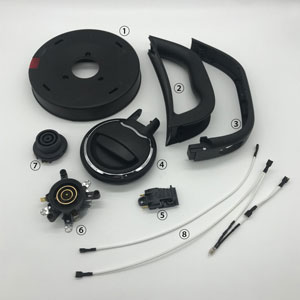

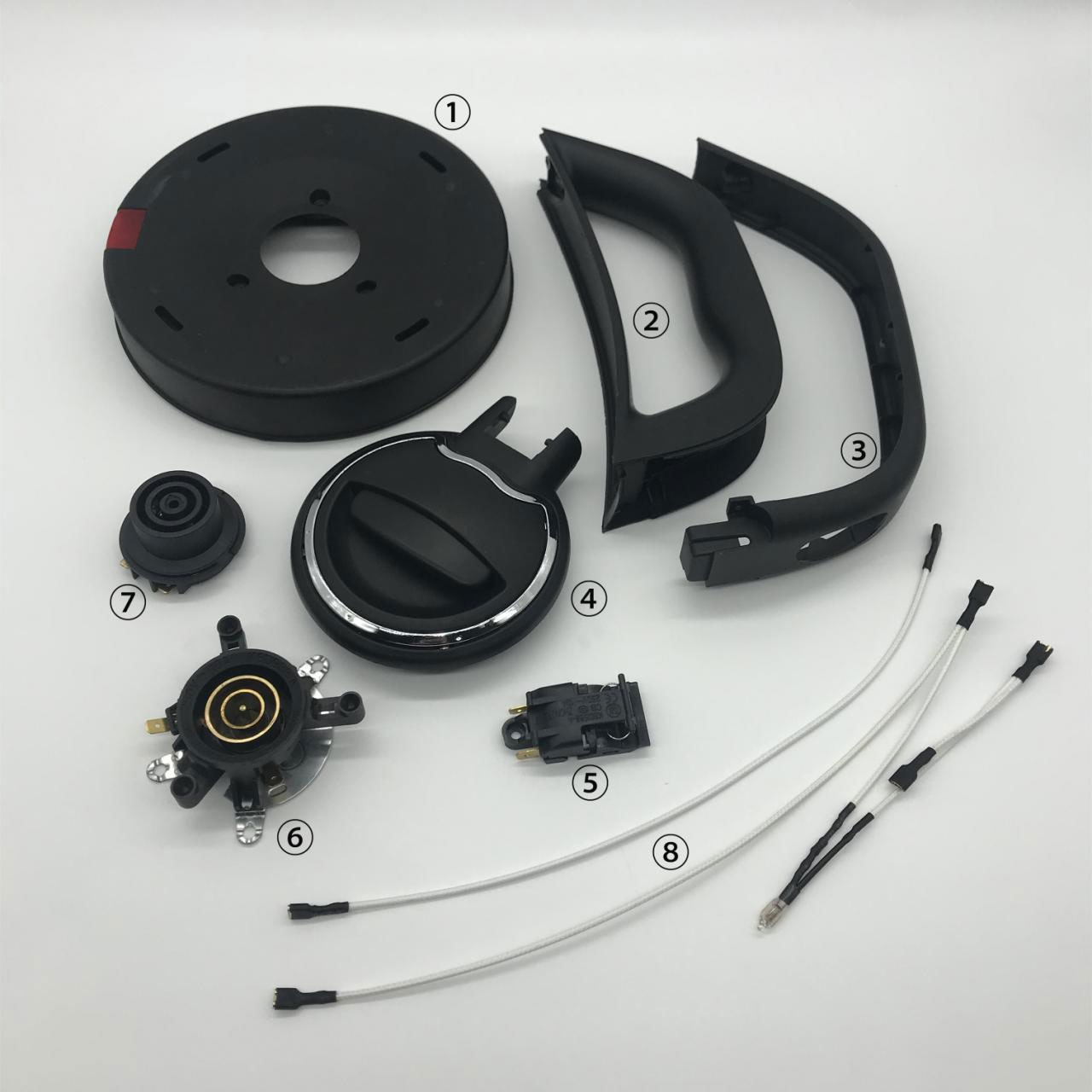

SPARE PARTS 备件

① Heating base 底托 ② Inside handle 内手柄 ③ Outside handle 外手柄 ④ Inside steel cover 盖子（内钢盖） ⑤ Vapour/steam switch 蒸汽开关 ⑥ Temperature Control for dry heating 温控（防干烧） ⑦ Connector 连接器 ⑧ Led wires 灯线 Remark: color according to customer's requirements 备注: 颜色根据订单产品要求

Plastic parts of red color

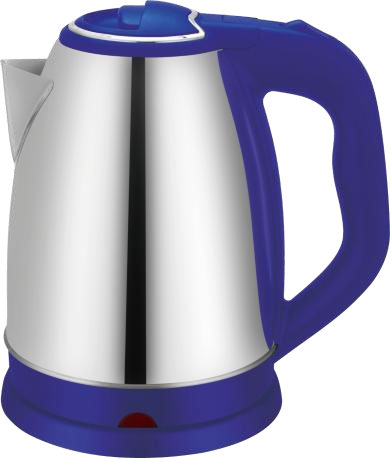

Plastic parts of blue color
