Mother and Son

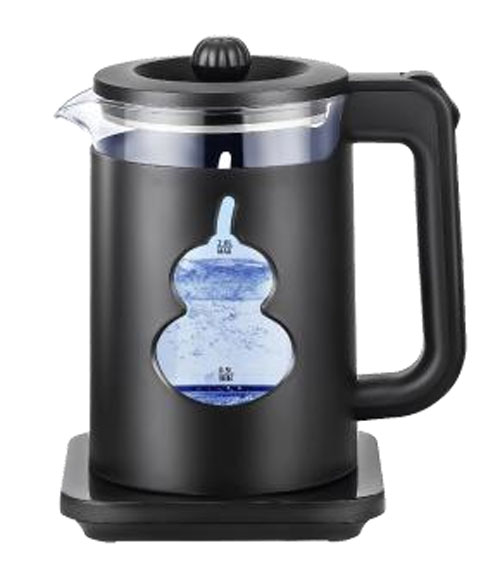

Mother and Son Son

Parameters
参数

Volume:1.5L+1.0L
容量: 1.5L+1.0L
Power: 1500W (Can be customized）
功率: 1500W （可定制）
Voltage: 220V(220-240V or 110V/120V optionable)
电压: 220V (可选 220-240V 或 110V/120V)
Frequency: 50Hz(or 50-60Hz)
Printed box size: 222*192*242mm/222*192*400mm
彩盒尺寸: 222*192*242mm/222*192*400mm
Carton size: 685*405*505mm/908*595*420mm
纸箱尺寸: 685*405*505mm/908*595*420mm
Quantity per carton: 12pcs/ctn
装箱数: 12PCS/CTN
Quantity per container, --pcs/40HQ
装柜数: --PCS/40HQ

Main Body Frame

Glass: high boron silicon glass
玻璃: 高硼硅玻璃

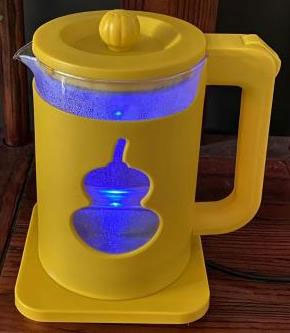

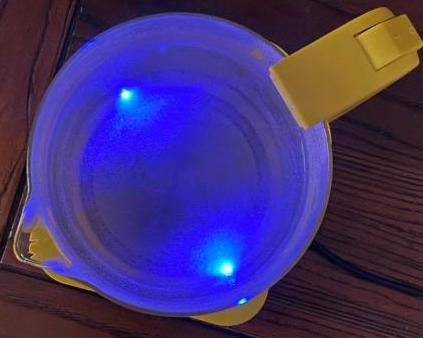

Led Indicator: blue LED, all direction reflection, blue color when water is boiling
指示灯: 蓝色 LED 全折射光圈，水沸呈蓝色
Heating disck: thickness of materials: 0.28mm, sanding and lining surface processing
发热盘: 厚度 0.28mm, 砂面拉丝

Details

Plastic part:: with special PP material, high boron and silicon glass, independent top cover
塑料件: 水壶专用 PP 料，高硼硅玻璃，独立壶盖
Power supply seat: 360 degree turnable,
电源座: 360 度旋转电源座
temperature control: single metal temperature contro (double metal customizable)
Automatic power shut offer at 100degree temperature avoiding the dry heating
温控: 单金温控（可定制双金）, 水烧开 100℃自动断电, 带防干烧

Double metal sheet
Temperature Control

Single metal sheet
Temperature Control

LED line: pure coppy, 0.5-0.75mm2(customizable)
灯线: 全铜, 截面积 0.5-0.75mm2 （可定制
Power cable： Copper with Aluminium clad outside (or pure copper) , 0.75-1mm2(customizable)
电源线: 铜包铝（可全铜）, 截面积 0.75-1mm2（可定制）,长度 75cm（可 定制）
Bottom label: Size: 40mmX20mm, put on the bottom of base(seat)
底标: 尺寸: 40mmX20mm, 贴在电水壶底部
Manuals: size: 142.5mmX210mm
说明书: 尺寸: 142.5mmX210mm
Protection bag: Transparent plastic bag
| 保护袋子: 透明塑料袋
SPARE PARTS
