Customized Color Available

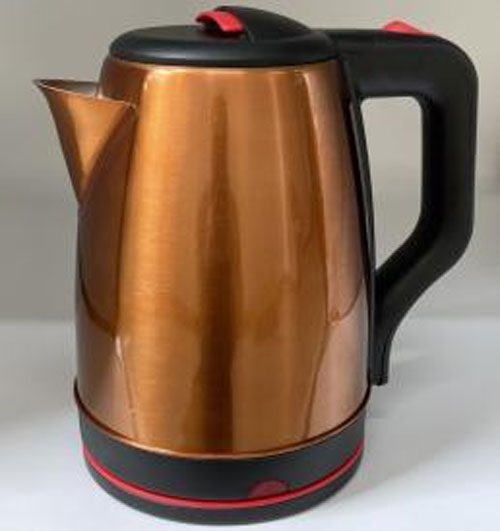

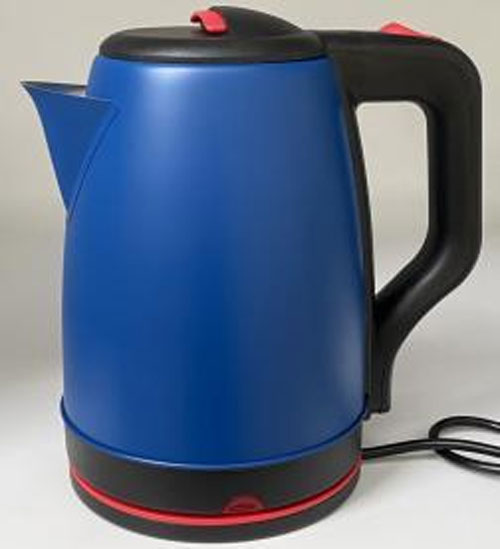

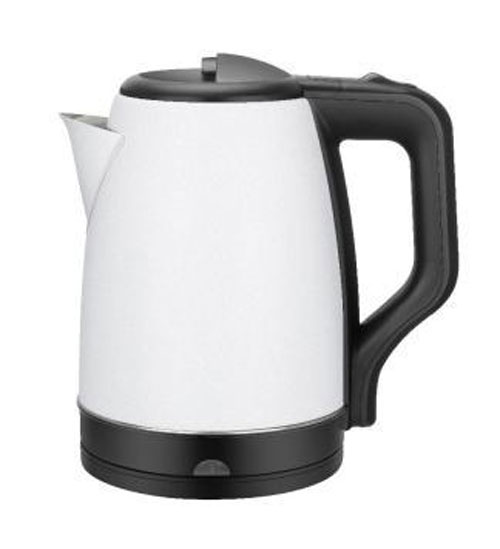

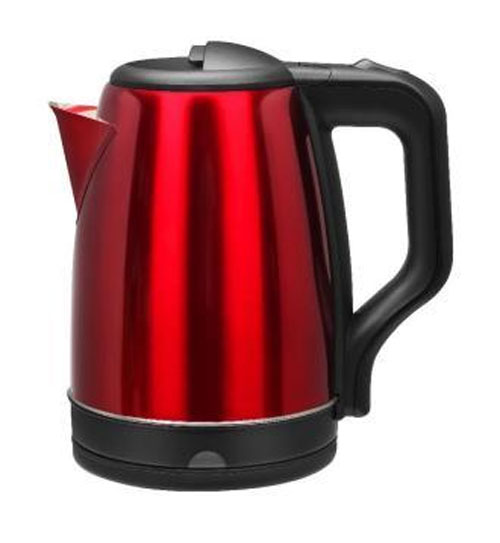

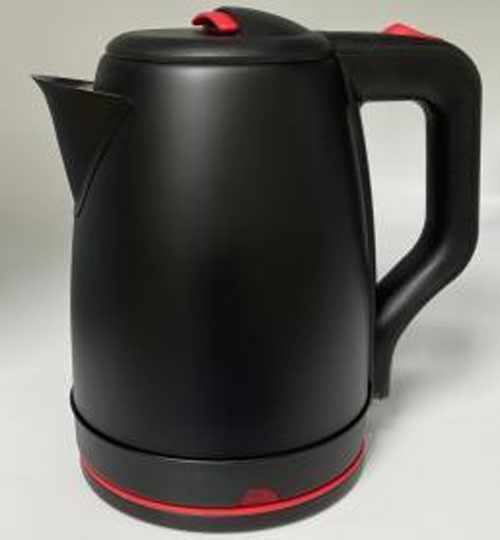

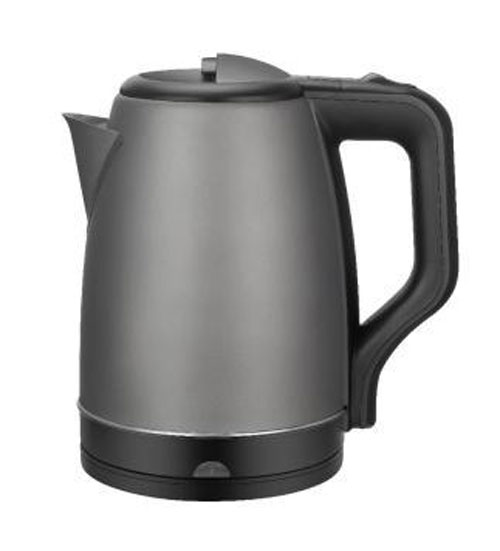

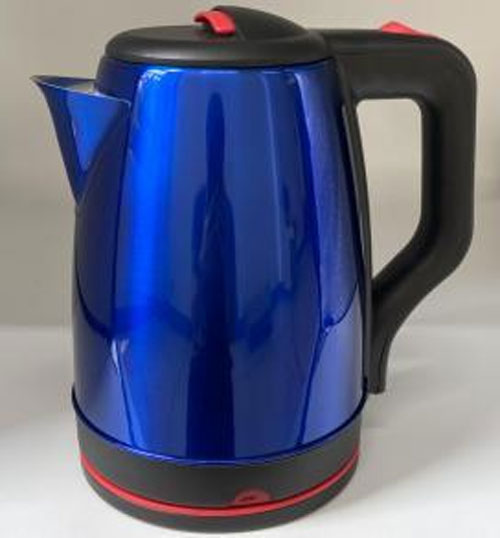

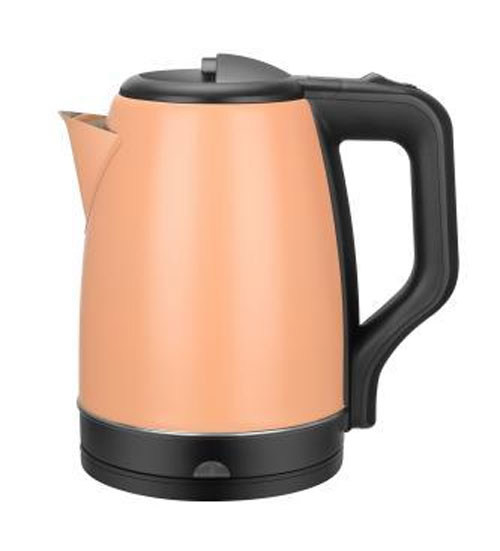

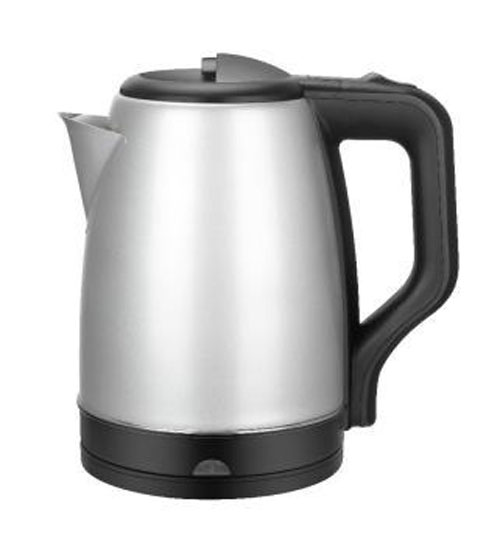

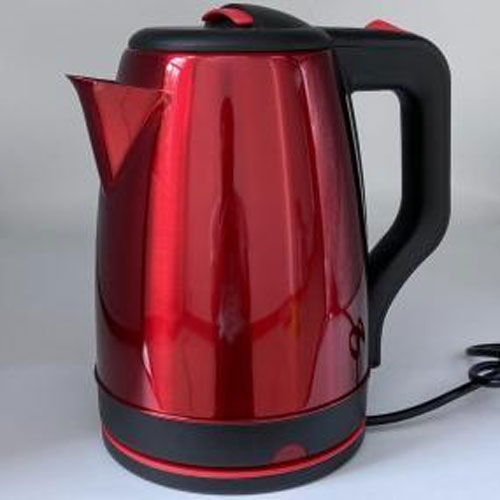

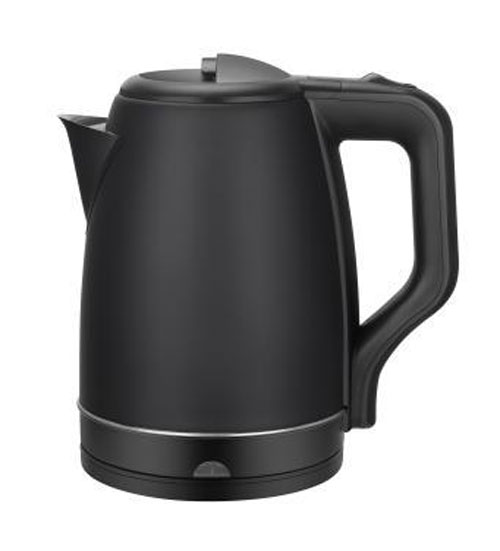

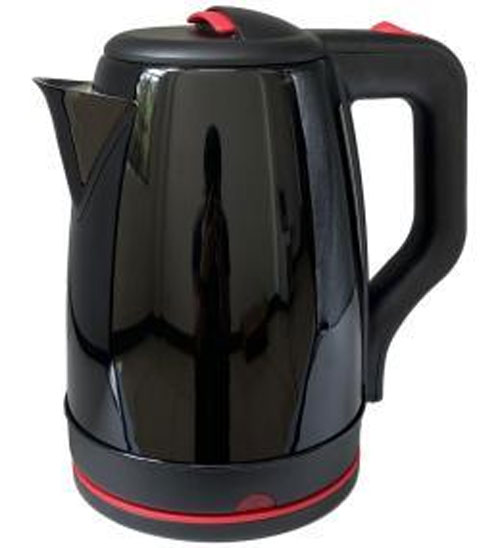

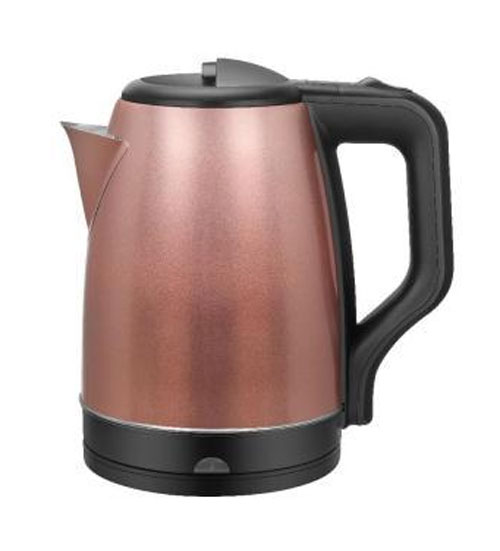

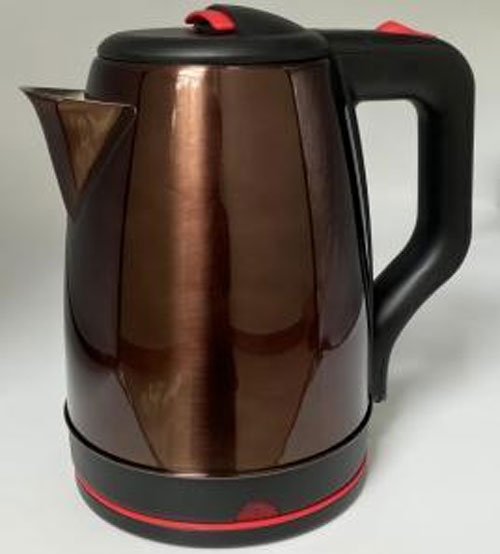

transparent black transparent blue transparent brown transparent red sand black ancient copper china red deep grey peach red rose gold sand black matt sand black sand blue sand grey sand white sand silver matt


Parameter
参数

Volume: 2.0L/2.2L
容量: 2.0L/2.2L
Weigh: 730g
重量: 730g
Power:1500W(Other wattage customizable)
功率: 1500W (可以定制其他功率)
Voltage:220V(220-240V or 110V/120V optionable)
电压: 220V (可选 220-240V 或 110V/120V)
Frequency: 50Hz(or 50-60Hz)
频率: 50Hz (或 50-60Hz)

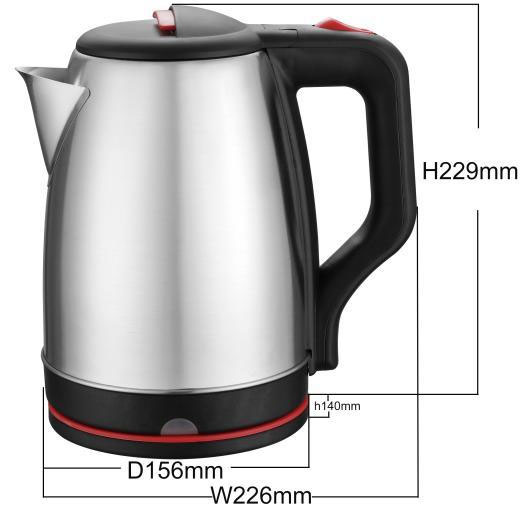

Kettle size:226mmX156mmX229mm
水壶尺寸: 226mm X 156mm X 229mm
Printed package size: 203mmX165mmX235mm
彩盒尺寸: 203mm X 165mm X 235mm
Carton size: 203mmX165mmX235mm
纸箱尺寸: 620mm X 340mm X 480mm
Quantity per carton: 12PCS/CTN
装箱数: 12PCS/CTN
Quantity per container
装柜数: 8100PCS/40HQ

Main Body Frame
不锈钢壶身

Stainless steel 201#(304#optionable) ,sand polishing or shine polishing, or high shine polishing, pattern silk printable
不锈钢: 201#( 可选 304# ),砂光或亮光,可精抛,可丝印图案
Kettle Internal: Supersonic water cleaning (internal sanding, welding bones removals)
内部工艺: 超声波水洗 (可内砂、去焊骨等)

Internal sanding, and welding bones removals

Internal sanding
Internal supersonic cleaning
Material Thickness: 0.26-0.35mm (Customizable)
厚度: 0.26-0.35mm 可定制
Kettle beak: material thickness: 0.35, surface: shining or sanding according to the kettle body surface , welding spot removable
壶嘴: 厚度 0.35mm, 对应壶身亮面或砂面 ,可去焊点
Heating disck: meterial thinckness: 0.28mm, surface: polished shining
发热盘: 厚度 0.28mm, 抛光亮面
Kettle size:146.5mmX146.5mmX186mm
壶身尺寸: 146.5mm X 146.5mm X 186mm


Details

Plastic parts: PP special for electric kettle, shining surface, good hand feeling, with corresbonding bright shining color
塑料件: 电水壶专用 PP, 亮面, 手感好, 搭配明亮彩色
power supply seat: 360 degree turnable seat, with fringed shining edges, red outside and black center
电源座: 360 度旋转电源座,裙边亮面(可选复合座).

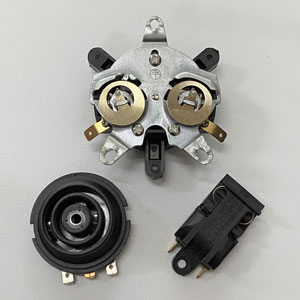

Temperature control: Single metal temperature control (doubel metal temperature control comtomizable), 100degree C automatic shut off with dry burning
温控: 单金温控(可定制双金), 水烧开 100℃自动断电, 带防干烧


Double metal sheet
Temperature Control

Single metal sheet
Temperature Control

LED line: pure coppy, 0.5-0.75mm2(customizable)
灯线: 全铜, 截面积 0.5-0.75mm2 (可定制)

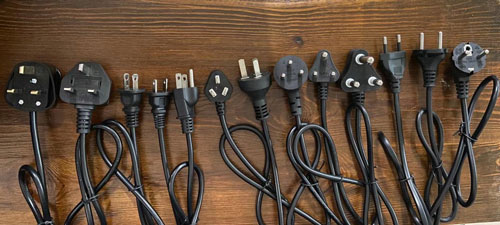

Power cable: Copper with Aluminium clad outside (or pure copper) , 0.75-1mm2(customizable)
电源线: 铜包铝(可全铜), 截面积 0.75-1mm2(可定制),长度 75cm(可 定制)

Bottom label: Size: 40mmX20mm, put on the bottom of base(seat)
底标: 尺寸: 40mmX20mm, 贴在电水壶底部

Manuals: size: 142.5mmX210mm
说明书: 尺寸: 142.5mmX210mm

Protection bag: Transparent plastic bag
| 保护袋子: 透明塑料袋

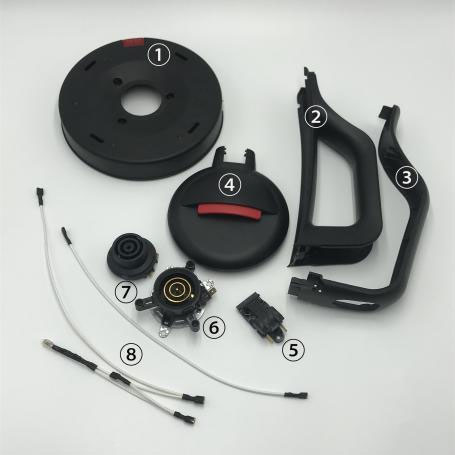

SPARE PARTS
备件


① Heating base 底托
② Inside handle 内手柄
③ Outside handle 外手柄
④ Inside steel cover 盖子(内钢盖)
⑤ Vapour/steam switch 蒸汽开关
⑥ Temperature Control for dry heating 温控(防干烧)
⑦ Connector 连接器
⑧ Led wires 灯线
Remark: color according to customer's requirements
备注: 颜色根据订单产品要求
